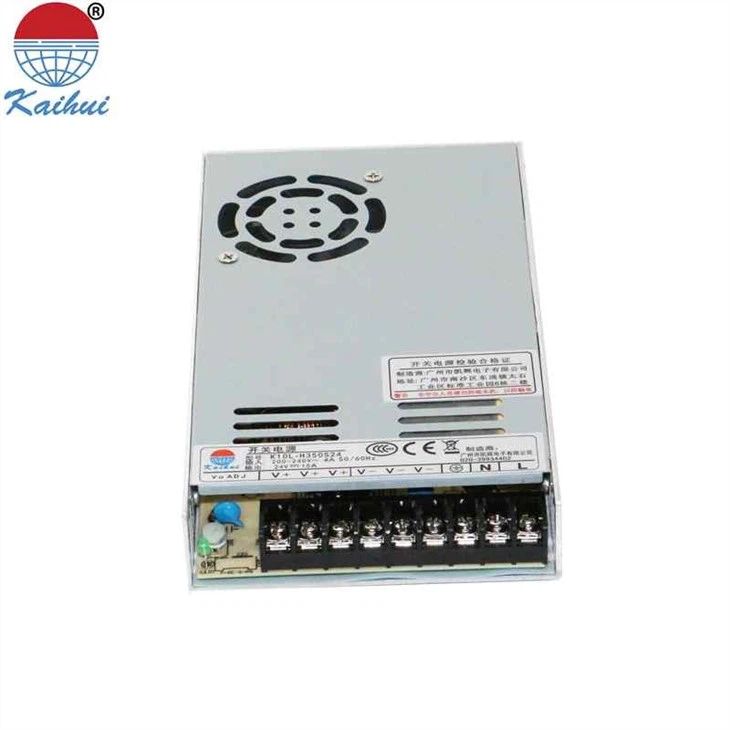

K10L-H350S seri pouvwa ekipman pou 24V, voltaj opinyon se soti nan 90VAC 240VAC, li setifye pa CCC, CE, UL, li se cho vann nan mitan mote a stepe, machin pou kwit manje otomatik ak lot moun.
Karakteristik:
1, Segonde efikasite 360W oblije chanje ekipman pou pouvwa;
2, Bati-an EMI filtre ak PFC fonksyon, bri ki ba, fyab segonde;
3, 12V 30A ekipman pou pouvwa ak laje ran de AC voltaj opinyon;
4, 12V 360W ekipman pou pouvwa ak overload, kous kout, sou-voltaj ak sou pwoteksyon tanperati;
Paramet | ||
Atik NO | K10L-H350S24 | |
Pwodiksyon | Pwodiksyon voltaj | +24VDC |
Kouran rated | 15A | |
Pouvwa rated | 360W | |
Ripple & bri | 280mVp-p | |
Pwodiksyon ADJ. Pòte | 21.6-26.4V | |
Presizyon pwodiksyon | ±1% | |
Liy Regleman | ±0.5% | |
Regleman chaj | ±1% | |
Fikse, Leve, Kenbe moute tan | 2s, 50ms, 20ms | |
Opinyon | Antre Voltaj Range | 100-240V AC |
Antre kouran | 4A / 230Vac, 8A / 115Vac | |
Antre frekans | 50-60Hz | |
Efikasite @230Vac | 88% | |
Pouvwa fakte | PF>0.98/115V oswa PF>0.95/230V | |
Kouran Inrush | Fret komanse 30A / 230Vac | |
Kouran kouran | <> | |
Pwoteksyon | plis pase chaj | 105 ~ 150% Hiccup, rekiperasyon otomatik |
Sikwi kout | Oktob, rekiperasyon otomatik | |
Pwodiksyon sou voltaj | >120% Panyen desann, pwoteksyon Hiccup, rekiperasyon otomatik | |
Plis pase Temp., | >105 ° C li pral pwoteksyon, Le sa a, rekiperasyon otomatik | |
Fonksyon | Founiti fan | >50 ° C fanatik la ap komanse travay |
Anviwonman | Travay Temp., Imidite | -20 ~ 60 ° C, 10 ~ 90% RH, Pa gen kondansasyon |
Depo Temp., Imidite | -40 ~ 85 ° C, 10 ~ 95% RH | |
Tanp, drift | ±0.03% / ° C (0 ~ 50 ° C) | |
Vibrasyon | 10 ~ 500Hz, 2G 10min./1cycle, PERYOD pou 60min. | |
Sekirite & EMC estanda | Prensip Sekirite | GB4943 IEC62368-1 |
Kenbe tet ak voltaj | Mwen / P-O / P: 3KV; I / P-FG: 1.8KV; O / P-FG: 0.6KV AC 1min | |
Rezistans izin | I / P-O / P, mwen / P-FG, O / P-FG: 500VDC / 100M Ohms | |
EMC Creole | EN55032 KLAS B EN61000-3-2 | |
Lòt | MTBF | >50K trape |
Dimansyon | 215 * 115 * 30mm (L * W * H) | |
Pwa | 0.8KG | |
